K13SNatural gas series

K13SNatural gas series

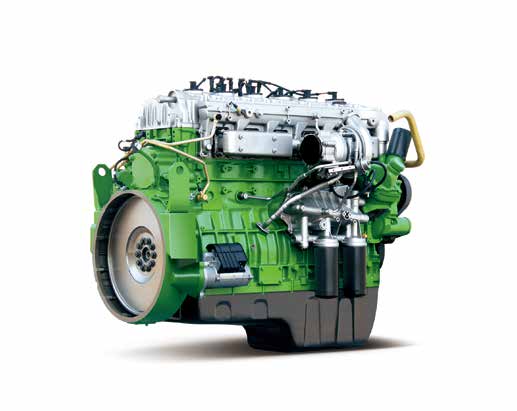

The engine adopts integral cylinder head, in-line six cylinder, four valve, overhead camshaft, rear gear chamber, with displacement of 12 L, cylinder diameter and stroke of 130x161, and power of 410 HP (301kw). The technical route adopts the electronic control natural gas injection system of Woodward company. The engine B10 has a service life of 1.5 million km / 25000 hours, which can meet the emission standards of five countries and six countries.

National hotline:

400-996-6881

Consulting


Characteristics


1)Strong power: the maximum torque at rated speed of 1900rpm is 1750n. M, and the torque at 800rpm can reach 1530n. M;

2)Ultra low fuel consumption: Advanced turbocharging and high pressure electric control injection and calibration technology;

3)High safety: the latest high-pressure HPD cylinder brake formulation technology is integrated, and the medium and low speed brake power is increased by more than 50%;

4)Lower noise: helical gear and noise reduction design;

5)High reliability: advanced structural design and technology, application of wear-resistant and high temperature resistant new materials, optimal cooling and lubrication layout, B10 life up to 1.6 million km / 25000 hours;

6)Lighter weight: integrated modular design.


Technical Parameter



Engine ModelK13S340TK13S396TK13S456T
Engine Type
 Direct Injection、In-line、4-Stroke、Water Cooled、Four Valves
Fuel systemWoodward EFI
Intake Type Turbo charger/Air-air intercooler
Rated Power216kW260kW300kW
Max Power240kW290kW335kW
Bore*Stroke130*161(mm)
Number of Cylinder6
No.of valves/per cylinders 4
Total Displacement12.8L
Ignition sequence1-5-3-6-2-4
Low Idler Speed600±50(rpm)
Max.torque/Speed1750/1100-1450(N.m)
Starting ModeElectrical starting
Net Weight1065kg
Length*width*height1373*812*1138
 Emissioncountry3
Engine B10 life 25000(h)
Fuel TypeNatural gas


*The company reserves the right to change and improve product design or technical performance, please prevail in kind. Subject to change without prior notice.
